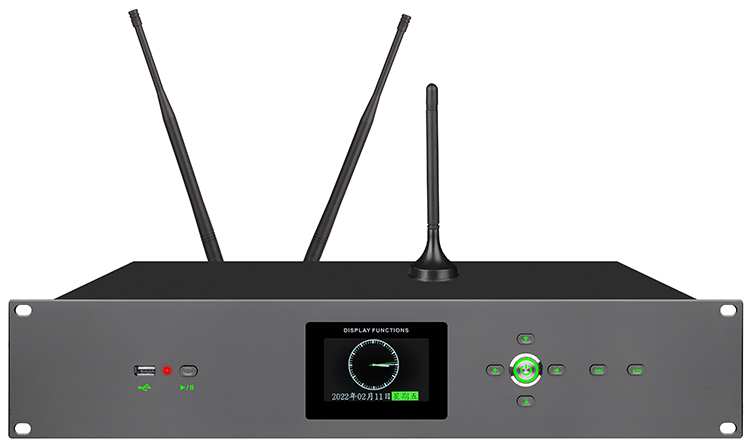

3800 Series Camera Tracking Conference System Main Controller WS-3800M

1. The system adopts the combination of digital and analog circuits and high fidelity circuit design, which can produce high quality CD sound effect.
2. At most 20 systems can be used simultaneously in the same environment, and each system can support 199 representatives or a chairman plus 198 representatives.
3. It has the functions of first in first out, special for the chairman, limited speech and limited time speech, and has the function of one key shutdown. At most four units are allowed to speak at the same time.
4. The working distance is 60m.
5. With video function
6. A B antenna base: install audio antenna.
7. Parallel output: independent audio XLR parallel output.
8. Non parallel mixing output: Audio 6.3 mixing output.
9.. Installation of control channel antenna base C.
10. Power socket: connect dc12v-16v power input.
11.. RS-232 socket: connect video switcher or central control equipment.
12. RS-232 camera interface.
13. RS-485 camera interface: when the camera with 485 interface is connected, the corresponding a and B are connected with the A and B of the camera.
14. USB computer interface: computer software can be connected for camera tracking or other function settings
